Mini Excavator Mulcher
Bite Limiter - VM Series
Shearex’s mini excavator mulcher is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance. Engineered for roadside upkeep, invasive species eradication, land clearance, and underbrush maintenance, our mini excavator mulcher models stand as the pinnacle of efficiency. Experience high visibility, robust rotor design, adjustable motor, and bolt-on liner and skid shoes made of Hardox® 500 for ultimate wear resistance. and easy maintenance or replacement.
Want to see our mulcher in action? Contact us for a free demo!
- Choose between carbide teeth or blades.
- CONVEX DX™ Protection System.
- G2.0 Balancing Standard Zero Vibration Rotor.
- Blade Angle Optimized for a Perfect Cut.
- Customer kit in a robust Dewalt Shell Tough Box included with each purchase.
- Optional Grapple System.
- Oil cooling system through the flushing line.
- Poly-Chain® Carbon transmission belt.
Product Specification
MINI EXCAVATOR MULCHER

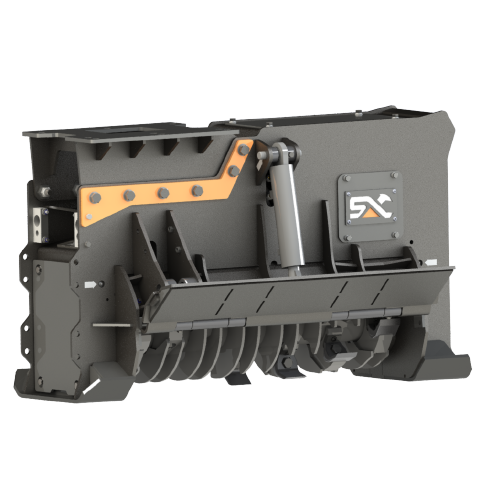

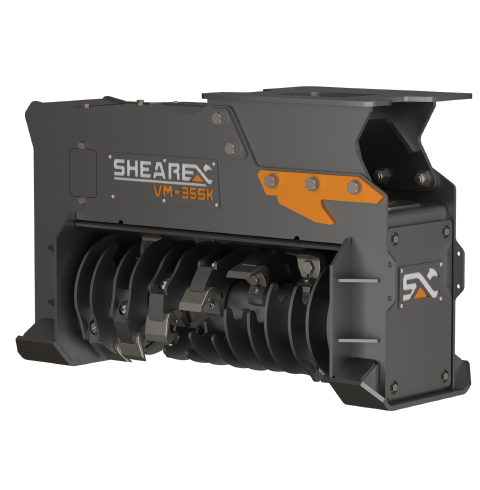

Designed for versatility and power, the Shearex mini excavator mulcher - VM Series - provides powerful and efficient mulching capabilities in a compact form. It mounts easily on your excavator and transforms it into a high-efficiency mulching machine.
CONVEX DX™ PROTECTION SYSTEM

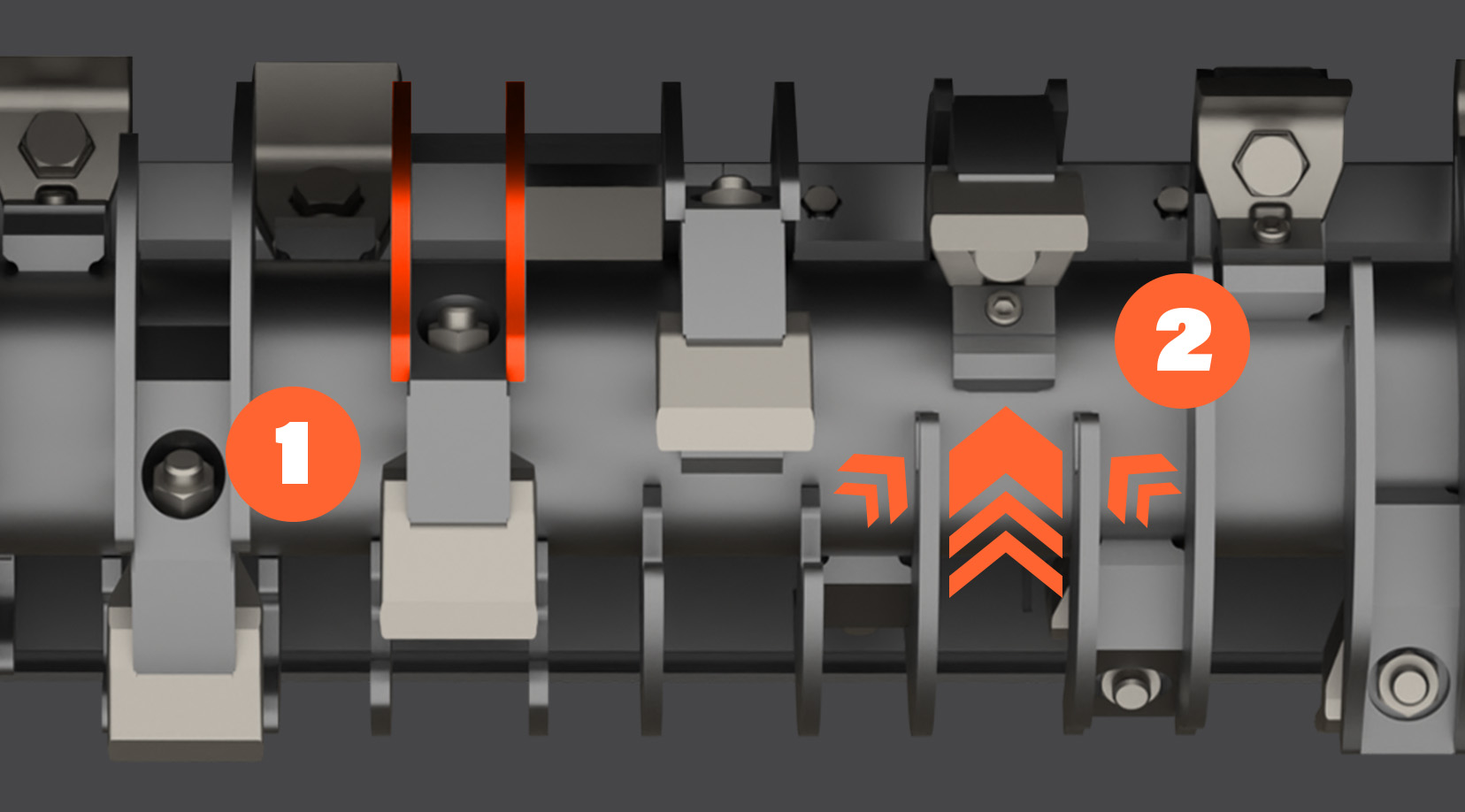

Our unique Convex DX system uses a double-ring to force the material towards the center of the rotor, effectively reducing the amount of material being cut per pass and alleviating strain on the blade holder.
BLADE ANGLE OPTIMISED FOR A PERFECT CUT
Our blade mount design allows for greater durability and cutting power. The rotor on our mini excavator mulchers maintains its power throughout the blades’ lives.

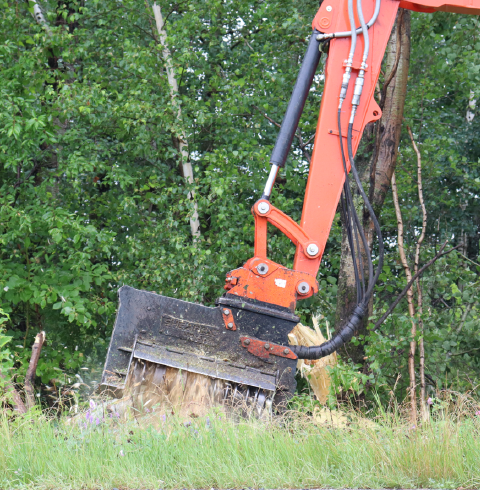

ROADSIDE MAINTENANCE
Whether it’s to clear the sides of hunting lanes, trails, roads or highways, the power and speed of our mulcher heads are unparallel to anything else on the market.
FOREST FIRE PREVENTION WITH OUR FORESTRY MULCHERS
Cutting firebreaks can be a safe and efficient way to limit the spread of forest fires.
INFRASTRUCTURE
Mini excavator mulchers can easily manage new roads to maintain a right of way under electrical lines or over pipelines.
LAND MANAGEMENT
Mulching heads are the most efficient tool to cut underbrush and keep your private property accessible.
|
Models |
|
VM-25SK |
VM-35SK |
|---|---|---|---|
| Excavator Size | Tons | 5 to 8 | 8 to 12 |
| Recommended Minimum Carrier power | HP (KW) | 37 (50) | 40 (54) |
| Cutting Width | IN (CM) | 28 (70) | 37 (95) |
| Cutting Dist. from Ground Level | IN (CM) | 0.25 (0.64) | 0.25 (0.64) |
| Number of Blades on Rotor | IN (CM) | 9 | 13 |
| Optimal Target Material Diameter | IN (CM) | <4 (<10) | 4 (10) |
| Exterior Length | IN (CM) | 41 (104) | 50 (127) |
| Exterior Height | IN (CM) | 31 (77) | 31 (77) |
| Exterior Width | IN (CM) | 23 (58) | 25 (63) |
| Rotor Diameter | IN (CM) | 15 (38) | 15 (38) |
| Approximate Typical Weight | LBS (KG) | 1,100 (499) | 1,307 (522) |
| Variable Displacement Axial Piston Motor | CC | 28 | 60 |
| Min. Required Continous Flow | gal/min; (l/min) | 15 (57) | 23 (87) |
| Max. Required Continuous Flow |
gal/min; (l/min) | 22 (83) | 38 (144) |
| Max. Operating Pressure |
PSI (BAR) | 6,000 (410) | 6,000 (410) |
| Rotating Speed | RPM | 3800 | 3500 |
| Tilting System | Optional | Optional | |
| Bolt-on Wear Liner | N/A | N/A | |
| Grapple System | N/A | Optional |
Mini Excavator Machine Types
Shearex Mini Excavator Mulchers are compatible with a wide range of mini excavators from 5 - 12 Tons. Providing flexibility and ease of integration into your existing equipment fleet.
Optional tilt system - The tilt system on our mulching heads for mini excavators allows for increased flexibility and superior visibility. Using the right technique, the tilt option can also increase productivity by letting gravity do the majority of the work.
Optional back grapple - Move and sort through smaller materials or pile them up for greater mulching control with Shearex’s mini excavator mulcher head VM-35SK models.
Different types of blade - Choose between our carbide tooth or blade, depending on your operations.
