Front Mount Mulcher

| | | | |

-180° 180°

Bite Limiter Mulchers

NEW CARBIDE TOOTH AVAILABLE

Shearex’s Bite Limiter mulcher is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance. This mulcher offers the speed and power to complete any land-clearing job. Use our forestry mulcher with your skid steer to be able to clear land with the utmost efficiency!

Choose between carbide tooth or blade
CONVEX DX™ Protection System
G2.0 BALANCING STANDARD ZERO VIBRATION ROTOR
Blade Angle Optimized for a Perfect Cut
Customer kit in a robust Dewalt Shell Tough Box included with each purchase
Optional Hydraulic Push-Bar

Complete catalog

Sell sheet

Get a quote

Product specifications

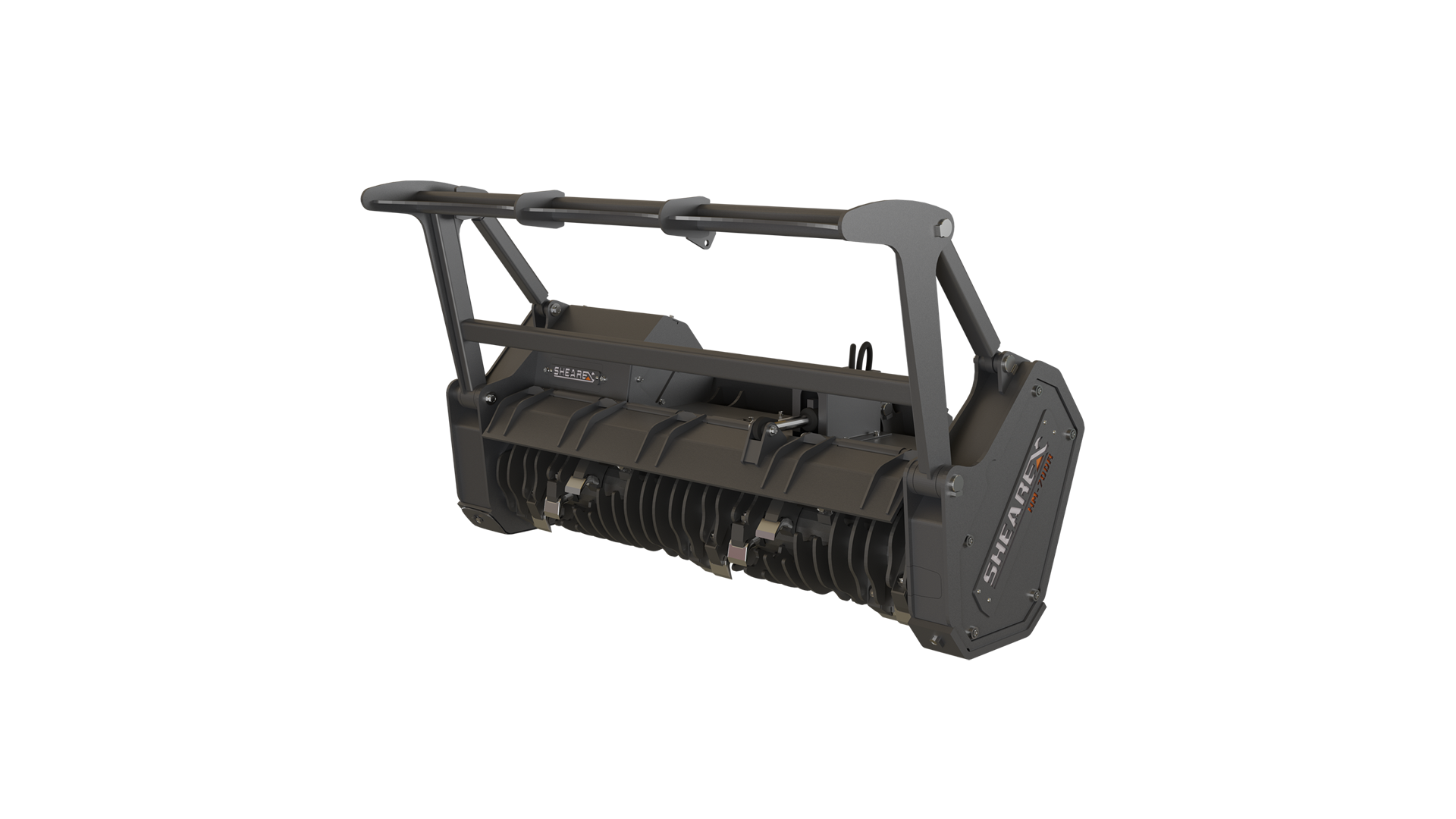

BITE LIMITER MULCHERS

Our Bite Limiter Mulchers are engineered for superior performance and ease of use, making them ideal for large-scale land clearing and forestry operations. These mulchers attach seamlessly to the front of your equipment, providing efficient and powerful mulching capabilities.

Designed for heavy-duty mulching tasks, the Bite Limiter Mulcher delivers exceptional performance and durability. Its front mount design allows for better control and maneuverability, making it easier to clear large areas of dense vegetation and preventing wildfire.

CONVEX DX™ PROTECTION SYSTEM

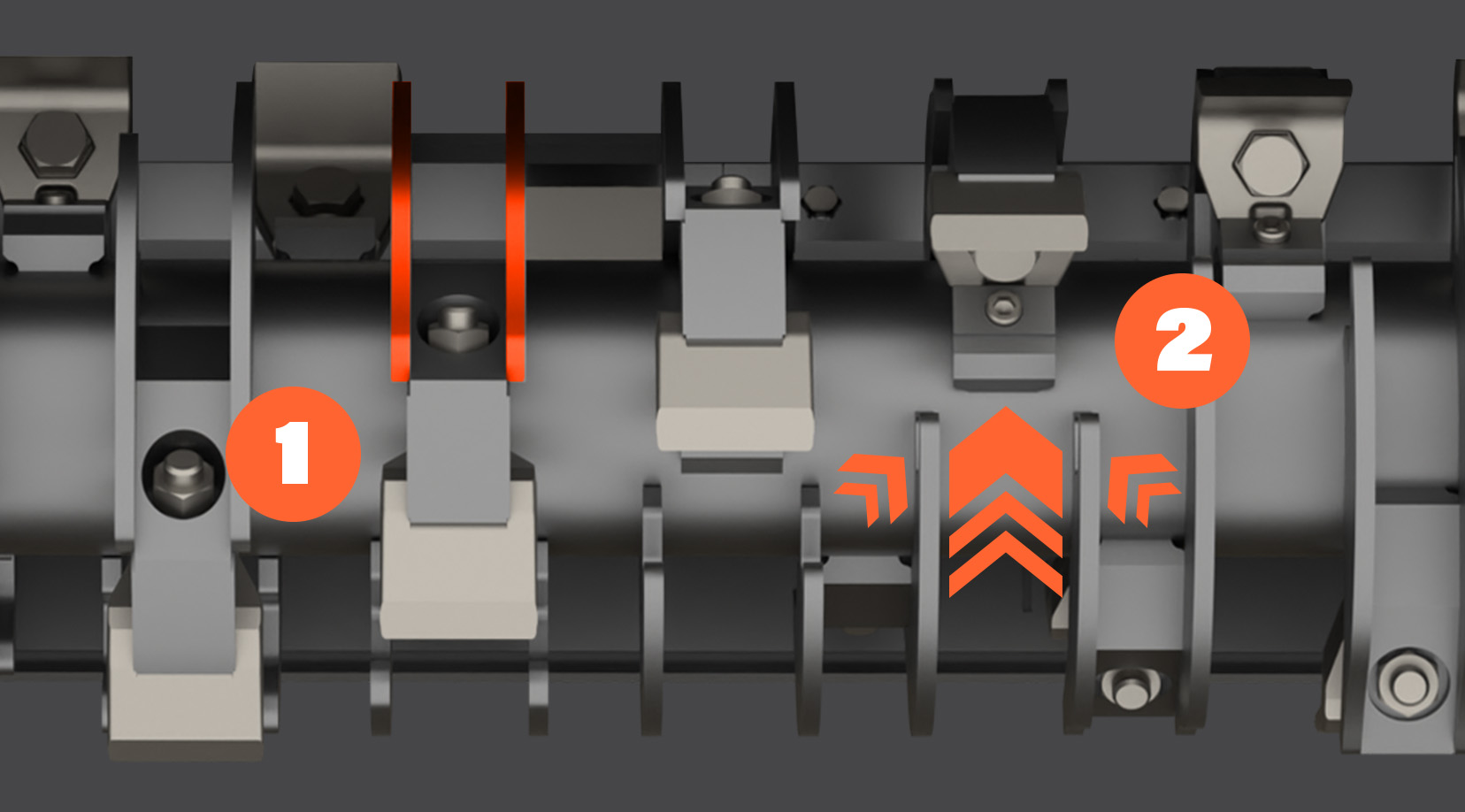

The protection system on our mulchers is made out of four types of fins that limit the amount of material cut with each pass and concentrates the smaller material toward the center of the blades.

BLADE ANGLE OPTIMISED FOR A PERFECT CUT
Our new blade and blade mount design allows for more durability and cutting power for our mulchers for excavators. The rotor maintains its power throughout the blades’ lives.

ROADSIDE MAINTENANCE
The power and speed of Shearex’s skid steer hydraulic mulcher can clear the sides of any hunting lanes, trails, roads or highways.

FOREST FIRE PREVENTION
Cutting firebreaks can be a safe and efficient way to limit the spread of forest fires when you use the best skid steer forestry mulcher on the market today!

INFRASTRUCTURE
Skid steer mulchers can easily manage new roads to maintain a right of way under electrical lines or over pipelines.

LAND MANAGEMENT
A hydraulic mulcher is the most efficient tool to cut underbrush and keep your private property accessible.

TECHNICAL SPECIFICATIONS

Model	Recommended Minimum Carrier power HP (KW)	Cutting Width IN (CM)	Number of Hammers on Rotor IN (CM)	Optimal Target Material Diameter IN (CM)	Exterior Width IN (CM)	Rotor Diameter IN (CM)	Approximate Typical Weight LBS (KG)	Variable Displacement Axial Piston Motor CC	Min. Required Continous Flow gal/min; (l/min)	Max. Allowed Continous Flow gal/min; (l/min)	Max. Operating pressure PSI (BAR)	Rotating Speed RPM	Bolt-on Liner	Fixed Pushbar	Front deflector	Hydraulic Motor Option
HM-60SR	68 (50)	59 (149)	21	6 (15)	72 (183)	17,625 (45)	2,300 (1,043)	80	23 (87)	6,000 (410)	2,600	Included	Included	N/A	N/A	N/A
HM-70SR	74 (55)	75 (190)	27	8 (20)	89 (226)	17,625 (45)	3,000 (1,361)	110	33 (133)	6,000 (410)	2,600	Included	Included	N/A	N/A	N/A
HM-70DR	74 (55)	75 (190)	27	8 (20)	89 (226)	17,625 (45)	3,285 (1,490)	110	33 (133)	6,000 (410)	2,600	Included	Included	N/A	Included	N/A
HM-70SV	125 (95)	75 (190)	24	10 (25)	90 (228.25)	20 (50)	3,640 (1,655)	160	52 (197)	6,000 (410)	2,500	Included	Included	Optional	N/A	N/A
HM-90SV	170 (127)	91 (230)	33	15 (40)	106 (269)	20 (50)	4,272 (1,938)	160	52 (197)	6,000 (410)	2,300	Included	Included	Optional	N/A	N/A
HM-100SV2	250 (190)	100 (254)	36	24 (60)	118 (299.25)	20 (50)	5,094 (2,311)	2x160	95 (360) for 160cc 70 (265) for 110cc	6,000 (410)	2,300	Included	Included	Optional	N/A	Optional 2x110

COMPATIBILITY

The Front Mount hydraulic mulcher is equipped with power between 68 hp to 250 hp, and can be mounted on your skid steer or excavator.

Our Bite Limiter Mulcher is compatible with skid steer loaders and front mount carriers, providing a versatile and powerful mulching solution for your equipment lineup.
