Excavator Forestry Mulcher

| | | | |

-180° 180°

Mulchers For Excavators - VM Series

Shearex’s excavator mulcher attachment is the ultimate tool for fast and efficient roadside maintenance, invasive species removal, land clearing, and underbrush maintenance! With years of experience, Shearex provides one of the most powerful attachment for land clearing on the market. Want to see our mulcher in action? Contact us for a free demo before buying your attachment!

Choose between carbide teeth or blades.
CONVEX DX™ Protection System
G2.0 BALANCING STANDARD ZERO VIBRATION ROTOR
Blade Angle Optimized for a Perfect Cut
Customer kit in a robust Dewalt Shell Tough Box included with each purchase
Optional Grapple System

Complete catalog

Sell sheet

Get a quote

Product specifications

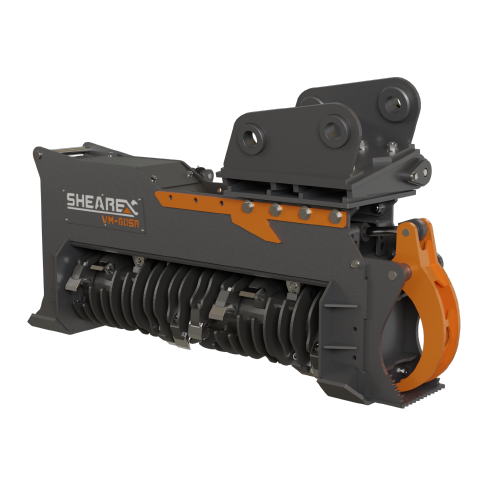

EXCAVATOR MULCHER

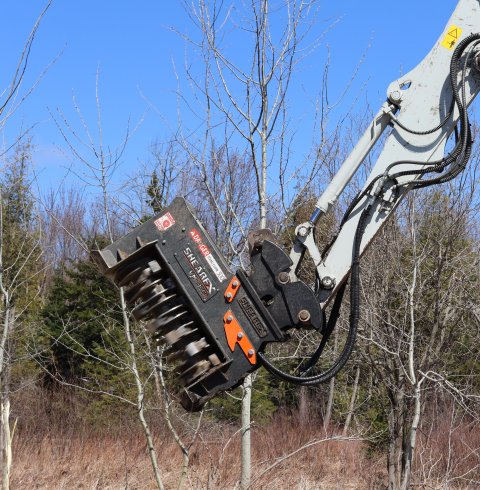

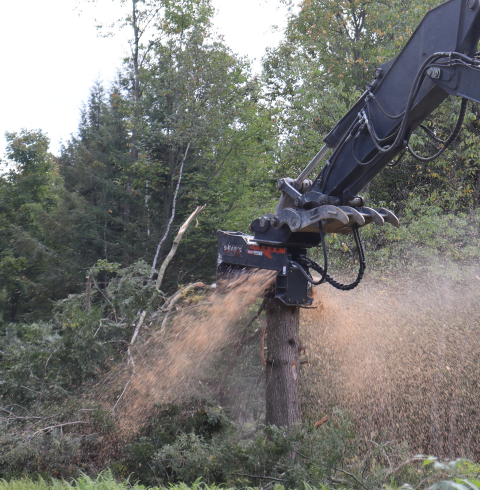

Designed for versatility and power, the VM Excavator Mulcher is perfect for land clearing operations. It mounts easily on your excavator and transforms it into a high-efficiency mulching machine, capable of handling the toughest jobs.

CONVEX DX™ PROTECTION SYSTEM
The protection system on our excavator mulchers is made out of four types of fins that limit the amount of material cut with each pass and concentrates the smaller material toward the center of the blades.

BLADE ANGLE OPTIMISED FOR A PERFECT CUT
Our new blade and blade mount design allows for greater durability and cutting power. The rotor on our excavator mulchers maintains its power throughout the blades’ lives.

ROADSIDE MAINTENANCE
Whether it’s to clear the sides of hunting lanes, trails, roads or highways, the power and speed of our mulcher heads are unparallel to anything else on the market.

FOREST FIRE PREVENTION WITH OUR FORESTRY MULCHERS
Cutting firebreaks can be a safe and efficient way to limit the spread of forest fires. Shearex’s excavator mulchers are the best forestry mulchers on the market today!

INFRASTRUCTURE
Excavator mulchers can easily manage new roads to maintain a right of way under electrical lines or over pipelines.

LAND MANAGEMENT
Mulching heads are the most efficient tool to cut underbrush and keep your private property accessible.

TECHNICAL SPECIFICATIONS

Model	Excavator Size Tons	Recommended Minimum Carrier power HP (KW)	Cutting Width IN (CM)	Number of Blades on Rotor IN (CM)	Optimal Target Material Diameter IN (CM)	Exterior Width IN (CM)	Rotor Diameter IN (CM)	Approximate Typical Weight LBS (KG)	Variable Displacement Axial Piston Motor CC	Min. Required Continous Flow gal/min; (l/min)	Max. Operating pressure PSI (BAR)	Rotating Speed RPM	Tilting System	Bolt-on Wear Liner	Grappling Hook
VM-25SK	5 to 8	37 (50)	28 (70)	9	<4 (<10)	23 (58)	15 (38)	1,100 (499)	28	13 (49)	6,000 (410)	3,800	Optional	N/A	N/A
VM-35SK	8 to 12	40 (54)	37 (94.5)	11	4 (10)	25 (63)	15 (38)	1,150 (522)	60	20 (76)	6,000 (410)	3,400	Optional	N/A	Optional
VM-40SL	12 to 15	48 (65)	42 (106.7)	14	6 (15)	25 (64.5)	16 (41)	1,668 (757)	80	30 (114)	6,000 (410)	3,500	Optional	Included	Optional
VM-50SR	15 to 20	59 (80)	48 (123)	17	10 (25)	28 (71)	18 (45)	2,150 (975)	110	42 (159)	6,000 (410)	3,000	Optional	Included	Optional
VM-60SR	20 to 25	96 (130)	59 (149)	21	15 (40)	28 (71)	18 (45)	2,614 (1,188)	110	42 (159)	6,000 (410)	3,000	Optional	Included	Optional
VM-65SV	25 to 40	127 (170)	65 (165)	21	20 (50)	29 (74)	20 (50)	3,707 (1,681)	160	51 (193)	6,000 (410)	3,000	Optional	Included	Optional

COMPATIBILITY

Our excavator mulchers are available for excavators weighing between 3 to 40 tons. Our Excavator Mulchers are compatible with most standard excavator models, making it a flexible tool for various land clearing applications.

Shearex's forestry mulchers fit regular-sized excavators, and we also offer mini-excavator mulchers for smaller excavators.

Options

Optional tilt system - The tilt system on our mulching heads for excavators allows for increased flexibility and superior visibility. Using the right technique, the tilt can also increase productivity by letting gravity do the majority of the work.

Optional back grapple - Move and sort through smaller materials or pile them up for greater mulching control with Shearex’s excavator mulcher head VM model!

Different types of blade - Choose between our carbide tooth or blade, depending on your operations.
